When diving into SAP for the first time, the myriad of acronyms like RFC, BAPI, IDOC, EDI, and more can feel overwhelming. Each term represents a different interface or protocol used in SAP, and understanding their roles and differences is crucial for effective SAP implementation and integration. The digitalization of company processes necessitates the integration of non-SAP systems, and SAP standard interfaces provide options to connect external systems to SAP. These interfaces offer advantages and disadvantages for data exchange.

Introduction of SAP Interfaces

Imagine trying to integrate your SAP system with external applications without a clear understanding of these interfaces. Mistaking an IDOC for an EDI or using an RFC when a BAPI is needed can lead to integration failures, data mismanagement, and increased downtime. Such mistakes not only delay projects but can also cause significant financial losses and frustrate your team. Let’s break down these acronyms and their functionalities to provide a clear understanding, making your SAP integration smoother and more efficient.

SAP Interfaces

What is an Interface?

An interface refers to a point of interaction or a connection between multiple disparate systems, applications, or external entities. These interfaces facilitate the exchange of data and information between their internal system and various external systems, enabling seamless integration and interoperability across their entire technical landscape. Interfaces in the SAP system enable companies to exchange data more efficiently, convert event data to business objects, and facilitate data transfer to the target system. This allows companies to reduce errors in exchanging data and gives employees more time to focus on value-added tasks. SAP offers various tools and technologies to create and manage interfaces, such as:

  • SAP PI/PO (Process Integration/Process Orchestration)
  • SAP Data Services
  • SAP Cloud Platform Integration
  • Application Programming Interfaces (APIs)
  • These tools help organizations customize and configure interfaces to meet their specific integration needs, whether it involves integrating SAP systems with each other or with external systems.

RFC – Remote Function Call

The classic way for communicate between non-SAP systems and SAP is the RFC interface. RFC interfaces are also often used to communicate between SAP systems themselves. With RFC, there is an RFC client and an RFC server, whereby the client calls a function on the server. The function is executed on the remote system. In an RFC coupling, both systems can act as server and client. The call of an RFC function is synchronous, so it is especially suitable for processes in which decisions or data are directly required for production.

  • Definition: Standard SAP interface for communication between SAP systems or between SAP and non-SAP systems.
  • Use Case: Facilitates local function calls within SAP systems, enabling seamless internal data transfer.

Example: Company A uses RFC to allow real-time data exchange between their finance and inventory SAP modules, ensuring up-to-date inventory levels are always available for financial reporting.

BAPI – Business Application Programming Interface

The basic concept of BAPIs is object-orientation. BAPIs make the business objects available in the SAP system for access by external systems. Business objects represent real objects such as orders, customers or articles. Technically the method is called on the basis of the RFC interfaces. The instance to which the calls are made is determined by key fields (e.g., customer number).

  • Definition: Specific methods available on SAP business objects that enable external applications to access SAP processes and data.
  • Use Case: Allows external systems to perform business operations such as creating sales orders via SAP.

For instance: At Company B, an outside CRM system utilizes BAPI to quickly create and update customer sales orders in SAP, streamlining order management.

Application Link Enabling (ALE)

IDoc Messages The IDoc (Intermediate Document) is an SAP file format intended for the transfer of transaction data. The IDoc type specifies the structure of an IDoc and specifies the location and exact length of fields in the file. IDocs are divided into a header line, data segments, and status records. Communication via IDocs is always asynchronous. The sender creates an IDoc with data according to the specification of the IDoc type and transfers it to the target system, which then processes it successively.

  • Definition: Mechanism for exchanging business data among R/3 applications.
  • Use Case: Facilitates data transfer within SAP environments by using IDOCs to transfer information between development and test environments. IDOCs can facilitate data transfer within SAP environments by moving information between development and test environments.

For example: Company E uses ALE to transfer master data and transactional information between their SAP development and production systems to ensure consistency across environments.

Electronic Data Interchange (EDI)

Definition: Exchange of business documents between partners using an electronic format standardized on one standard format. Use Case: Commonly utilized for B2B transactions, converting IDOCs into an external data exchange format such as EDI. interieur

  • Definition: Exchange of business documents electronically between partners in an industry standard format.
  • Use Case: Used extensively in B2B transactions, IDOCs can be converted to EDI format for external data exchange.

Example: Company D exchanges invoices and shipping notices with its logistics partners using EDI to reduce manual entry errors while speeding up supply chain processes.

Web Services and APIs (SOAP, REST, UDDI, WSDL)

SOAP Webservice

SAP Web Services (SOAP) are new technologies used to connect SAP systems, with SOAP functions being called using the HTTP protocol and detailed information about functions and parameters provided via a WSDL file. SOAP is an XML-based protocol for exchanging structured information, while REST is an architectural style for networked applications. UDDI and WSDL provide directory services that identify web service interfaces and list them, making them essential for seamless data exchange between SAP systems.

REST API

The SAP Gateway provides ABAP functions and RFC interfaces in the form of a REST API. REST is easy to call from various platforms, transfers data in JSON or XML, is faster and saves resources compared to SOAP. REST accesses an object by using its state, which has the potential to change.

SOAP is an XML-based protocol for exchanging structured information, while REST architecture for networked applications enables more flexible data exchange. UDDI serves as a directory service for web services interfaces.*WSDL: An XML document outlining web services.

Company F uses REST APIs to connect its e-commerce platform with SAP, providing real-time inventory checks and order updates that enhance customer experiences.

SAP HANA The SAP HANA platform offers an in-memory database, allowing access to relational database systems. Data exchange can take place via agreed tables and functions.

Case Study: Simplifying Integration at XYZ Corp

XYZ Corp faced major difficulties when trying to integrate its SAP system with third-party applications. Initial attempts used mismatched interfaces which led to data inconsistencies and project delays. By categorizing their requirements correctly and making use of BAPIs for external transactions and IDOCs for internal data transfer, XYZ Corp successfully streamlined their integration process, cutting downtime by 40% while increasing data accuracy by 25%.

  • Case Study 2: Enhancing Data Accuracy at ABC Inc.

ABC Inc. was having difficulty with manual data entry errors during their procurement process. By switching to electronic data interchange (EDI) between suppliers and themselves, ABC Inc. successfully eliminated these errors while decreasing processing times by 30% – this switch also provided greater visibility into their supply chain operations and tracking capabilities.

  • Case Study 3: Optimizing Internal Data Transfer at DEF Ltd.

DEF Ltd. experienced delays in their software development lifecycle due to inconsistent data between their development and production environments. Using ALE and IDOCs, DEF Ltd. automated their data transfer process so as to keep their development and production systems synchronized – an achievement which resulted in an efficient 20% reduction of their development cycle time.

Sap interfaces tcode

SAP, transaction codes (T-codes) are used to execute specific tasks or access particular screens. While there isn’t a single T-code specifically labeled “SAP interfaces,” you can find relevant T-codes related to interface development and management. Here are a few:

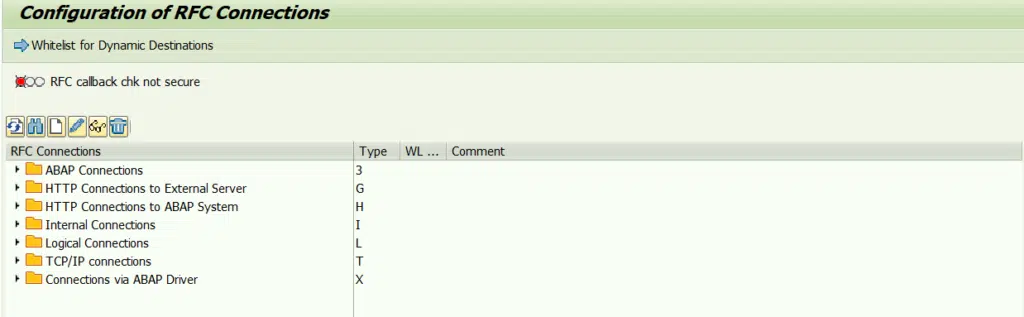

  • SM59 (RFC Destinations):Used to configure communication between SAP systems and external systems via Remote Function Calls (RFCs). Create, modify, or test RFC destinations for interfaces.
RFC

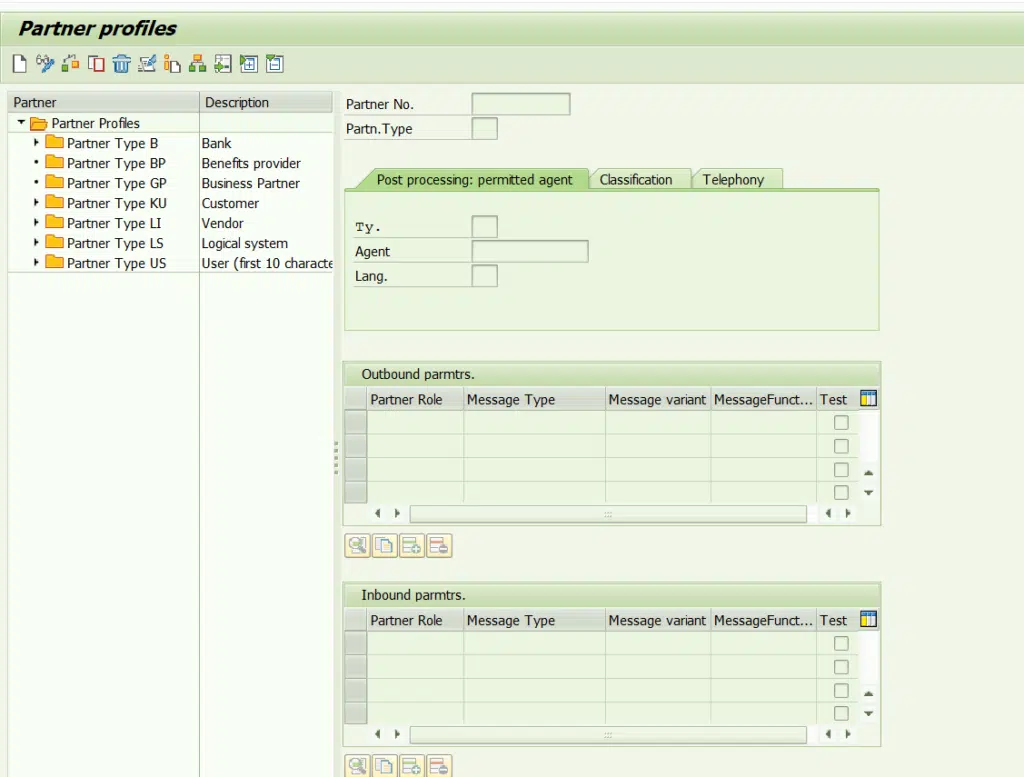

  • WE20 (Partner Profiles):Defines communication partners (systems or components) for ALE (Application Link Enabling) interfaces.Set up inbound and outbound partner profiles.
Partner Profiles

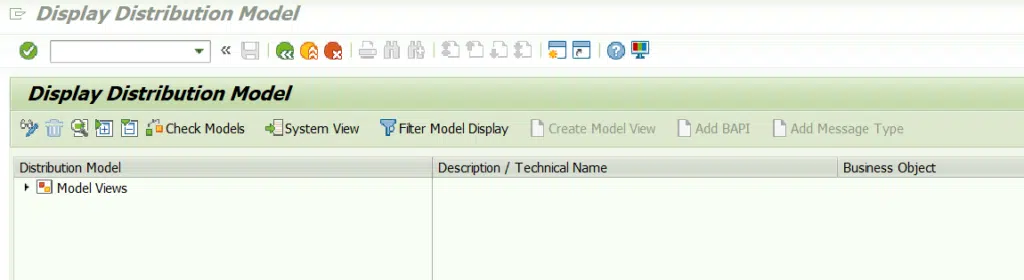

  • BD64 (Distribution Model): Used for ALE distribution models. Define how data is distributed between systems.
Distribution Model

  • IDX1 (IDoc Metadata Overview):Provides an overview of IDoc types and their attributes.Useful for IDoc-based interfaces.
IDoc Metadata

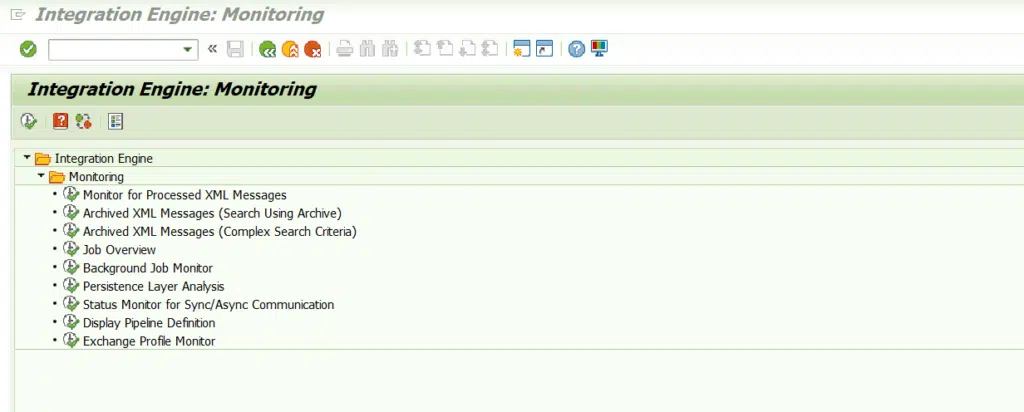

  • SXMB_MONI (Integration Engine – Monitoring):Monitors messages processed by SAP PI/PO (Process Integration/Process Orchestration).
Integration Engine

Check the status of messages in integration scenarios. Remember that the availability of these T-codes may vary based on your SAP system version and configuration.

Conclusion:

Understanding SAP interfaces is critical to efficient integration processes. By understanding their functions and avoiding acronyms or abbreviations, you can ensure smooth operations while preventing costly errors. When working with internal systems or external partners, knowing which interface to use will facilitate smooth data flow and robust system performance. Mastering SAP interfaces involves more than memorizing technical details; it involves finding solutions that deliver tangible business value – selecting suitable interfaces can reduce errors, save time, and enhance system performance; by exploring case studies you can see how these interfaces could transform your SAP landscape significantly

How can I optimize performance in SAP interfaces?

To increase SAP interface performance, consider strategies such as data volume reduction, parallel processing, compression techniques, caching and buffering, optimized query design, batch processing and monitoring and tuning. These strategies reduce data transfer while optimizing query design while decreasing communication overhead – using filters to retrieve relevant data sets, parallel processing processes large sets simultaneously and compression techniques used before transmission are decompressed at their destination.

What are some common challenges in SAP interface development?

SAP interface development can be an extremely complex process involving numerous challenges such as data consistency, error handling, performance optimization, security compliance, version compatibility testing validation and documentation. Data consistency is paramount for effective data exchange, while error handling and logging play a vital role in error resolution. Furthermore, performance optimization is crucial when dealing with large volumes of data – techniques like parallel processing and compression can significantly enhance this aspect. Security and authorization are crucial to data transmission and access control, yet maintaining backward compatibility can be challenging. Test and validation ensure interface functionality while proper documentation ensures smooth operations.
